Registry and Group Policy Settings (GPO)
The registry and GPO settings described below assist in configuring and troubleshooting the product.
Printer for Remote Desktop Server includes *.admx and *.adml administrative template files. These template files allow to configure the product via Local GPO and/or Domain-Based GPO. Please refer to Microsoft MSDN article on managing ADMX files.
GPO template
The archive file containing administrative template can be found in the installation directory:
%ProgramFiles%\FabulaTech\Printer for Remote Desktop (Server)\policies.zip
Additionally, the administrative template files are deployed to a local GPO during product installation and can be found here:
%WINDIR%\PolicyDefinitions\Fabulatech.admx %WINDIR%\PolicyDefinitions\ftprintrdpsrv.admx %WINDIR%\PolicyDefinitions\en-US\Fabulatech.adml %WINDIR%\PolicyDefinitions\en-US\ftprintrdp.adml

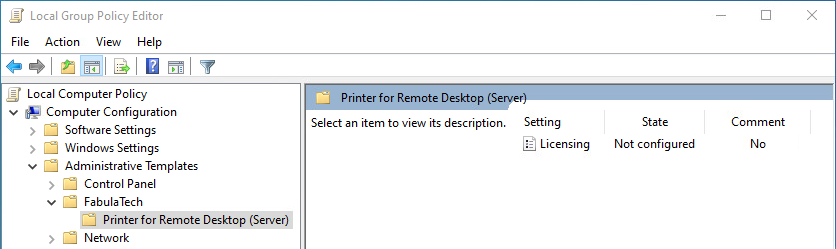

The GPO template can be used to configure the following settings:
| Setting | Description |
|---|---|
| Licensing | Licensing management. |
It's recommended to use the GPO template files provided with the latest product version of Printer for Remote Desktop Server.
Registry Settings
| HKLM\Software(\Wow6432Node)\FabulaTech\Printer for Remote Desktop (Server) | |||||
|---|---|---|---|---|---|
| Value name | Type | Range | Default | If none * | Description |
| LogLevel | REG_DWORD | 0-3 | 2 | 2 | Printer for Remote Desktop (Server) logging level: 0 - Error 1 - Warning 2 - Info 3 - Debug. |
|
Should be set both: HKLM\Software\FabulaTech\Netlink 3 HKLM\Software\Wow6432Node\FabulaTech\Netlink 3 |
|||||
|---|---|---|---|---|---|
| Value name | Type | Range | Default | If none * | Description |
| LogLevel | REG_DWORD | 0-3 | 1 | 1 | NetLink logging level: 0 - Error. 1 - Warning. 2 - Info. 3 – Debug. |
